SPECIFICATION

1,Working Medium:Air source

2,Body material:Zinc Alloy

3,Filter bowl and Lubricator bowl material:PC

4,Filter element material:Brass or plastic

5,Seal Material:NBR

6,Adjustabing knob:POM

7,Working pressure:0.15~0.85 MPa standard

8,Working Temperature:-20~50℃

9,Filtration fineness:40µ

10,Mounting type: Pipe mounting or bracket support mounting

11,Lubricator type:Oil volume adjustable during working

12,Port size:N07 G1/8”,G1/4”.N72 G1/4”,G3/8”

13,Drainage model: Semi-automatic drainer,N72 series Automatic optional

14,Design type:Modular

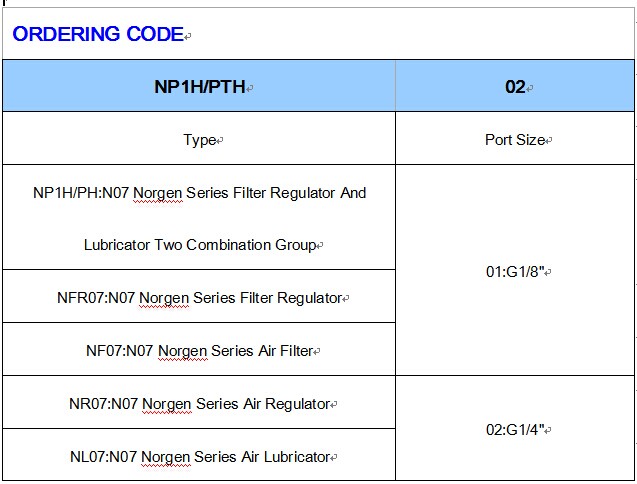

NP1H
